Medical Dry Film DR CT MRI Medical X Ray Films 210 microns Inkjet Blue Base Dye Ink 8x10 13x17 A4 A3 Sheets 10inch Roll
1. Instruction

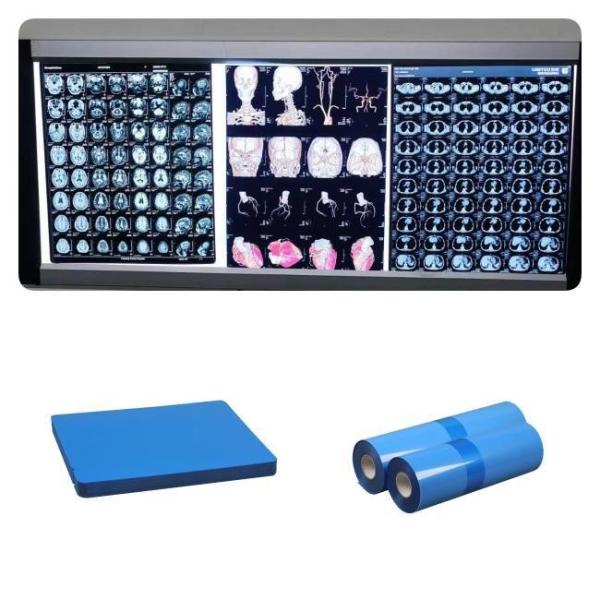

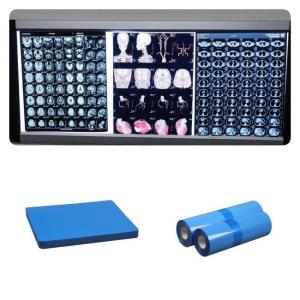

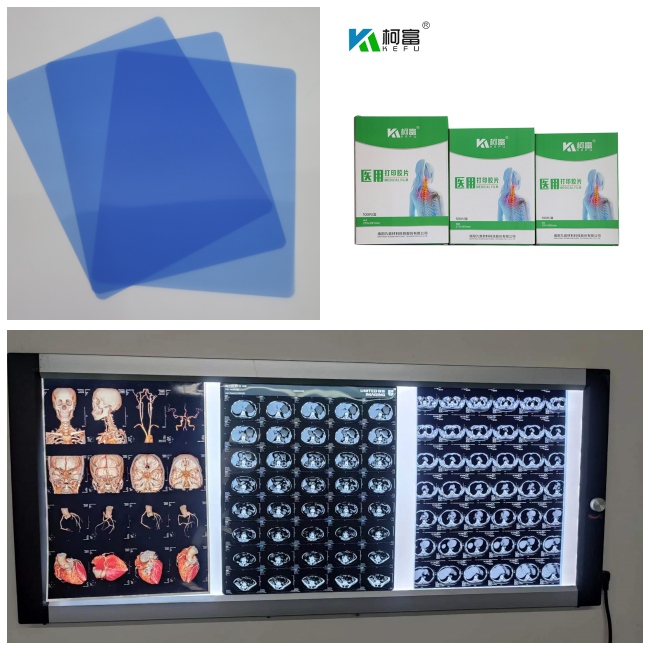

The inkjet blue base Medical X-Ray Film was used for DR, CR, CT, MRI, DSA, and CT 3D image output reconstruction. Support Black & White mode and Color image mode.
It was used to replace the traditional wet-type silver salt film due to its convenient operation and low-cost feature.
2. Features
- Three-dimensional, color, and functional imaging are clear at a glance! Reading is no longer limited by time and space!
- Generally, the printing effect of ordinary inkjet printers is very good. The print effect will be better when choosing our medical special ink You can use this product without replacing any of your current equipment. Good effect and is easy to store.
- Environmental protection: PET material, environmental protection material, green products.
- Nano-grade raw material and advanced uniform coating technology ensure the coating quality.
3. Advantage
- Low fog
- High sharpness
- High max density
- Bright tone
- Compatible with inkjet printers.
4. Specification
| Item | Physical Properties |
| Color | Blue transparent |
| Thickness | 210 microns |
| Weight | 280gsm |
| Black density | 1.6-3.0 |
| Opacity | >1+/-0.2% |
5. Printer compatible:
JD-P5670, JD-P671
Canon: G1810, iX6580/6780, TM5200, etc
Epson: L310, L3250, L1300, etc.
6. Package information
| Size available | Package |
| 8X10 | 100 sheets/pack | 10pack/carton |
| 10X12 | 100 sheets/pack | 5pack/carton |
| 11X14 | 100 sheets/pack | 5pack/carton |
| 13X17 | 100 sheets/pack | 5pack/carton |
| A4 | 100 sheets/pack | 10pack/carton |
| A3 | 100 sheets/pack | 5pack/carton |
| 10inch roll | 1 roll/box | 4 rolls/carton |
| 14inch roll | 1 roll/box | 4 rolls/carton |
7. Inks suggest
Water base dye ink. Suggest using our medical special ink, which enhances black density.
8. Storage condition
a.Take care to prevent direct sunlight from igniting the coating.
b. Keep the temperature at 10 °C - 23 °C, relative humidity 30% - 65%, and keep away from heat.
c. No acid or alkaline gases such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde should be in the storage room.
d. Try to be cool, dry and dust-free in the room. Even the fine dust will affect the printing effect of the film.
9. FAQ
Q.: Are you a manufacturer or trading company?
We have been a manufacturer specializing in digital printing products for years in Nanyang City, Henan province, China.
Also, we had a large warehouse and quality control department for purchasing products for clients.
Q.: Do you have certification?
Yes, we have CE, ISO9001, ISO14001, and ISO13485. We also have a medical device registration certificate for producing medical x ray film.
Q.: How long can I expect to get the sample?
The samples will be ready for delivery in 3-5 days.
The samples will be sent via international expresses such as DHL, UPS, TNT, and FedEx and would be arrived within 3-5 days.
Q.: How to control quality?
A, all the raw materials by IQC (Incoming Quality Control )before launching the whole process into the process after the screening.
Q.: How to order?
Please send us your purchase order by email: sales@cnjdsm.com
Or: WhatsApp/WeChat: +8616692076969 +8618637735208
